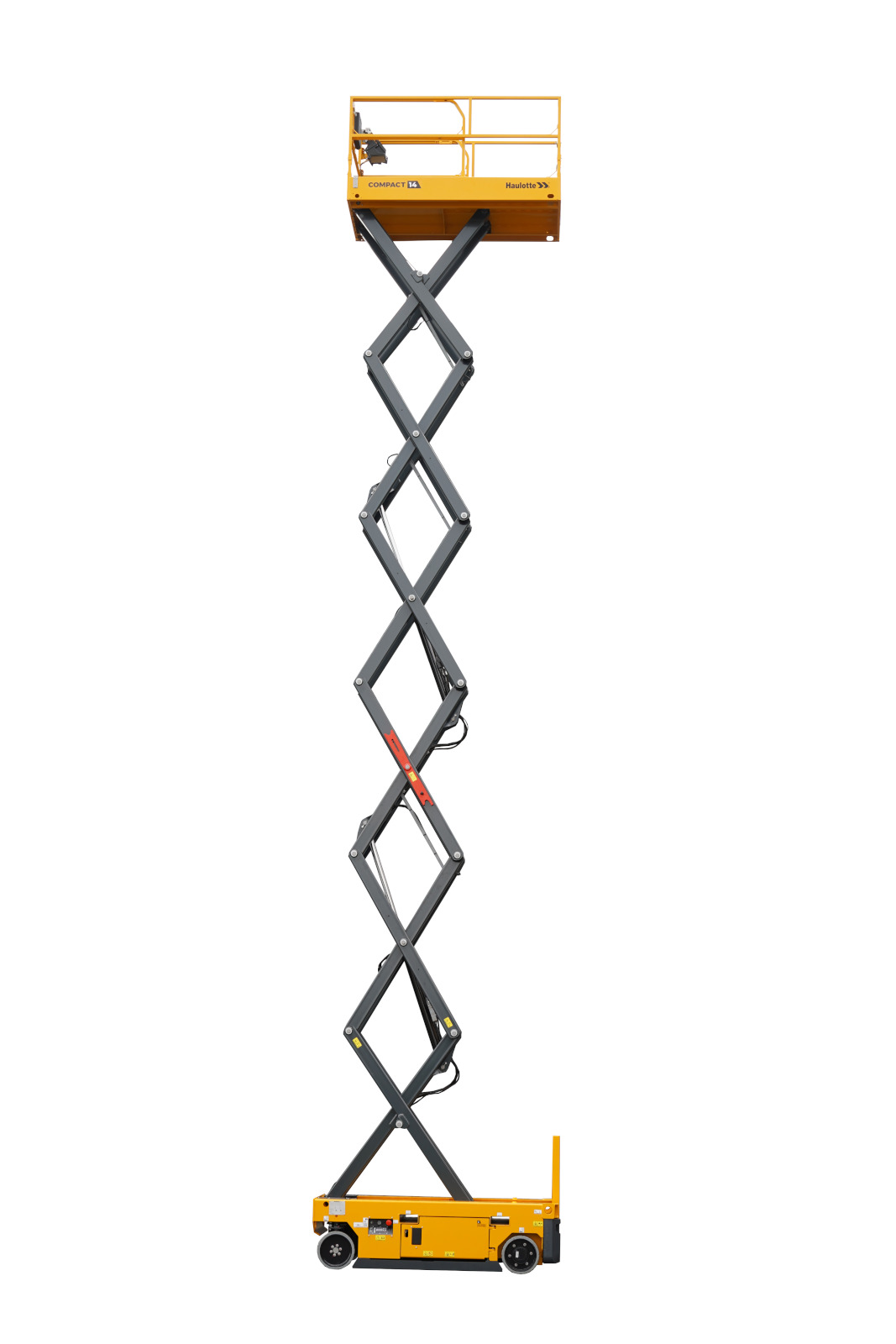

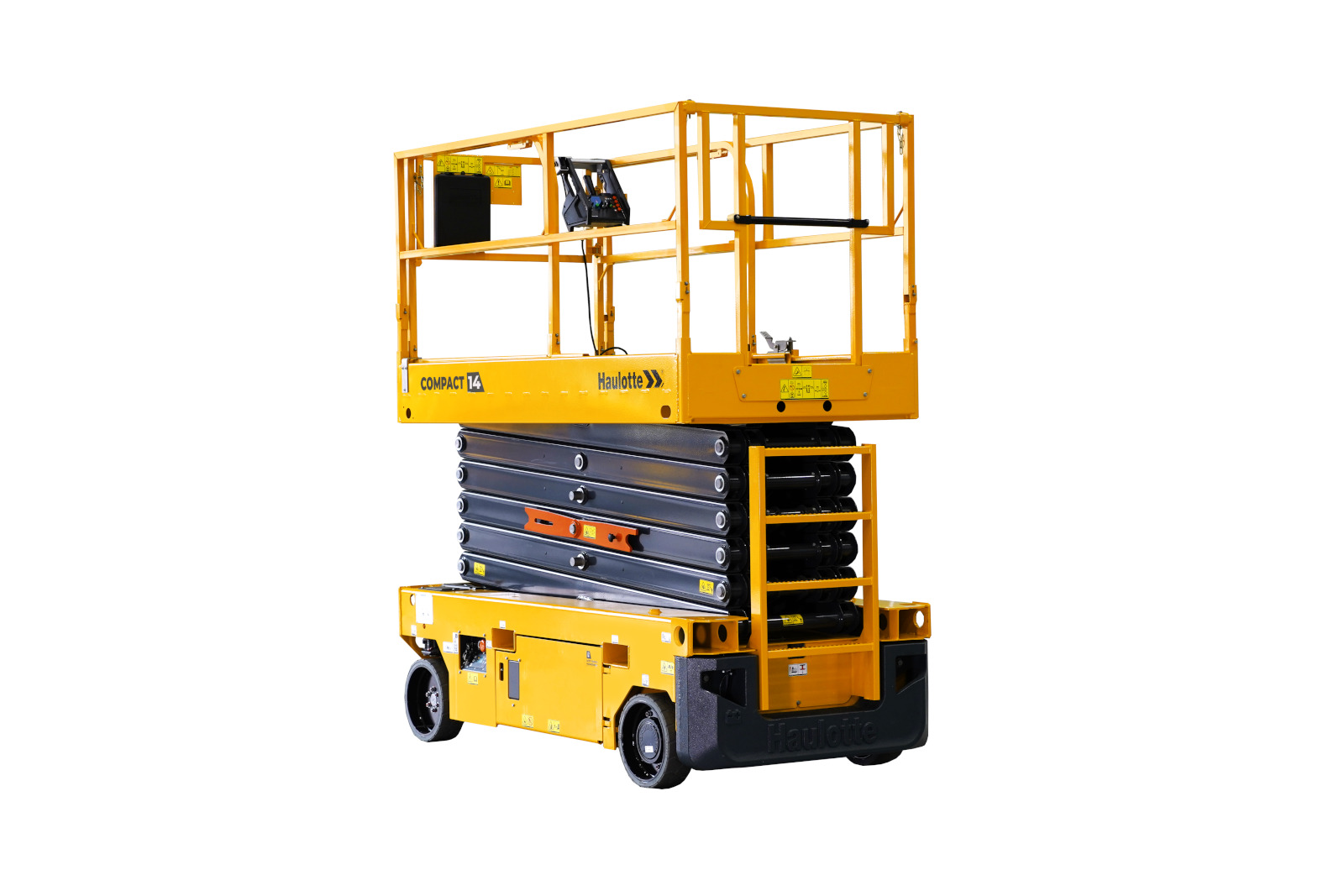

Electric scissor liftCompact 14

  • Electric scissor lift
  • Electric
  • Finishing
  • Logistic / Retail / Industry
  • Maintenance & restoration
  • Sporting & other events

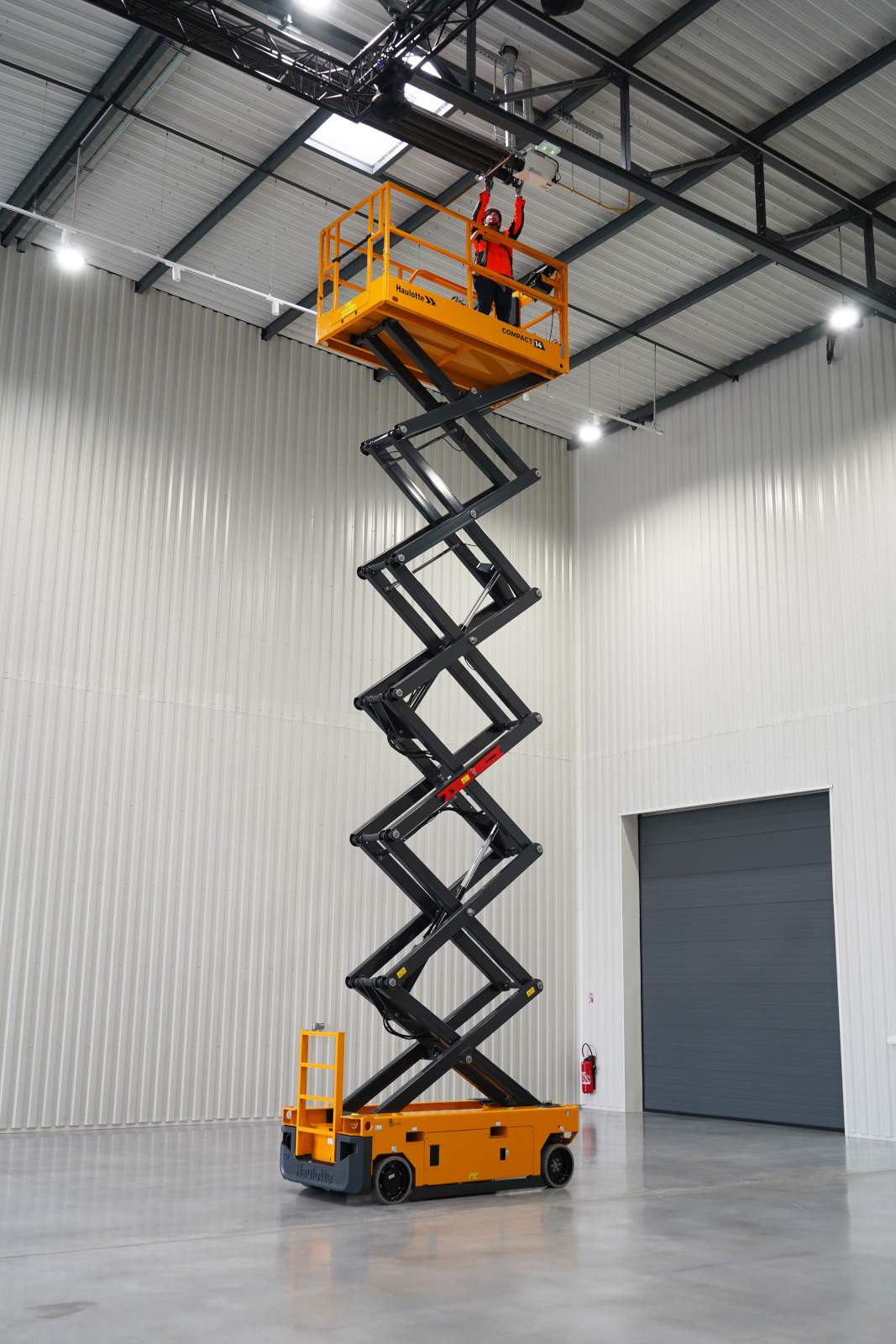

  • Inside use
  • Exceptional productivity
  • Working height up to 13.85m
  • Driveable at full height
  • Load capacity: 350 kg
  • Robust, reliable, easy to maintain
  • Extended platform
  • Long working cycles
  • Optimum compactness
  • 1.2m width
  • Folding guardrails

Working height 13.85 m
Platform height 11.85 m
Platform length - outside 2.31 m
Platform length - extended 3.23 m
Length - extension 0.92 m
Platform width - outside 1.2 m
Storage height 2.08 m
Height - stowed 2.5 m
Overall width 1.2 m
Length 2.49 m
Wheelbase 1.86 m
Ground clearance - Center 13 cm
Ground clearance - Deployed potholes 2.3 cm
Drive speed 0.9 - 2.7 km/h
Maximum drive height 11.85 m
Gradeability 23 %
Tilt 2° / 3°
Lift / lower speed 61 s / 50 s
Turning radius - outside 2.5 m
Non-marking tyres 15 x 5
Batteries 24 V - 340 Ah (C20)
Hydraulic system capacity 25 l
Weight 3 175 kg
Platform size - extended 3.23 x 1.2 m
Lift capacity - inside 350 kg (3 pers.)
Lift capacity - outside N/A
Lift capacity on the extension 150 kg
  • 24V DC motor
  • Battery charger with automatic stop
  • Battery charge indicator
  • Integrated forklift pockets
  • Pothole guards
  • Proportional lift and drive
  • 2 front steering & driving wheels
  • Folding handrails
  • Solid non-marking tyres
  • Brake release
  • Swing out component tray
  • Load Management System in the platform
  • Tilt controller
  • Hourmeter
  • Horn
  • Removable control box in platform
  • Manual platform lowering valve
  • Towing hooks
  • Power to platform
  • Swing door entry gate
  • Biodegradable hydraulic oil
  • Maintenance free batteries
  • Centralised battery filling
  • Pipe cradle
  • Flashing light
  • Working light
