HT28 RTJ PRO
HT28 RTJ PRO
HT28 RTJ PRO
HT28 RTJ PRO
HT28 RTJ PRO

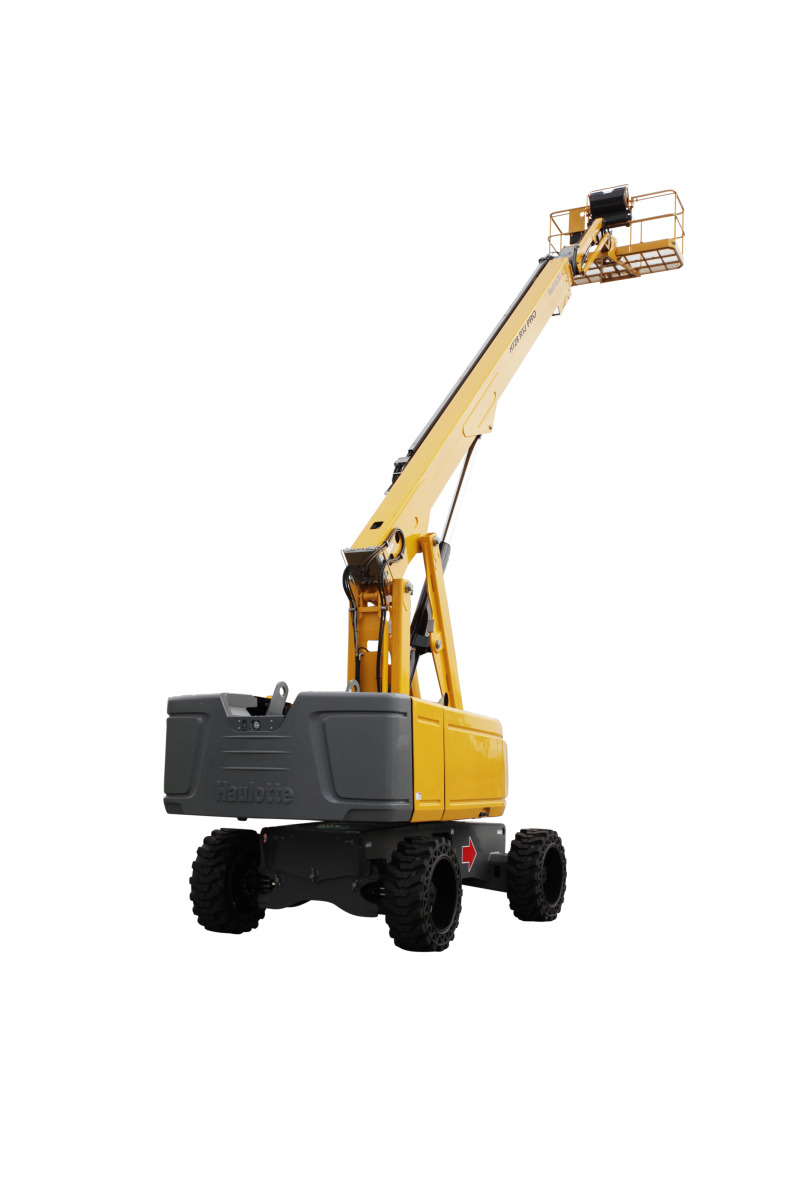

Telescopic Booms HT28 RTJ PRO

Our HT28 RTJ PRO telescopic boom is designed to work in the most restrictive environments and tackle the most demanding projects. HT28 RTJ PRO incorporates our latest innovations to offer you the safest solutions on the market for working at heights, increase the productivity of your construction sites and optimize the uptime of your machines. HT28 RTJ PRO is equiped with an oscillating axle which adjusts the position of the axle to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is shortened, enabling you to maneuver in tight or congested spaces."

Product characteristics

Outdoor

Outdoor

Rough terrain

Rough terrain

Diesel

Diesel

Application fields

Finishings

Finishings

Building works

Building works

Landscaping

Landscaping

Maintenance & Restoration

Maintenance & Restoration

Sporting & other events

Sporting & other events

HT28 RTJ PRO

Presentation

  • Performance & productivity
  • Safety & comfort
  • Cost efficiency

Specifications

Performance & productivity

Performance & productivity

  • Industry leading horizontal outreach of 23.85 m
  • Smooth and precise movements
  • Outsanding RT capacities
  • Dual load 230 - 350 kg (optional)
Safety & comfort

Safety & comfort

  • Haulotte Activ’Shield Bar 2.0
  • Haulotte Activ'Lighting System for safe loading / unloading in conditions of low visibility
  • Ultimate control & comfort is engineered to provide superior working-envelope efficiency
  • Rugged boom design
Cost efficiency

Cost efficiency

  • Haulotte Activ'Screen (on-board diagnostic)
  • Haulotte Stop Emission System which regulates engine run time, reducing fuel consumption, pollution, and noise
  • Modular platform quick and easy to repair
  • Easy access to all components

Working height 27.9 m
Platform height 25.9 m
Horizontal outreach 23.85 m
Below ground reach 3 m
Lift capacity 230 kg (2 pers.) - option 350 kg
Platform size 2.44 x 0.91 m
Length - stowed 13.05 m
Storage / transport length 9.8 m
Overall width 2.48 m
Height - stowed 2.85 m
Storage / transport height 2.98 m
Vertical jib rotation 133° (- 66° / + 67°)
Platform rotation 180° (+ 90° / - 90°)
Turntable rotation 360° continuous
Tailswing 150 cm
Wheelbase 2.80 m
Ground clearance 48 cm
Tilt 4 °
Drive speed 0.5 - 5 km/h
Maximum wind speed rating 45 km/h
Gradeability 45 %
Turning radius - outside 4.35 m
Tyres - solid rough terrain 1025 x 365 mm
Jib length 1.83 m
Fuel tank 120 l
Engine Deutz 55.5 kW (Stage 5, LRC, China 4)
Weight 18 100 kg

  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Stop Emission System
  • Haulotte Activ'Screen: on-board diagnostic
  • Haulotte Activ'Lighting System
  • Universal telematics plug
  • 4 wheel drive / 4 wheel steer
  • Oscillating axle
  • Smooth & proportional movements
  • Automatic wheel differential lock
  • Upper control box protection cover and tool tray in ultra-rugged composite
  • Large modular platform 2.44 x 0.91 m
  • Drop bar entry gate
  • Basket rotation 180° (± 90)
  • Swing out engine tray for easy maintenance access
  • Sound and light alarm for tilt and load
  • Motion alarm and rotating beacon light alarms

  • Non-marking tyres
  • Dual load capacity 230 - 350 kg (2 persons)
  • 60 km/h wind speed
  • 110 / 230 V power to platform
  • 1/2 in air line to platform
  • Lateral swing door entry gate
  • Hydraulic generator 3.5 kW or 6.5 kW
  • Work light package
  • Hydraulic oil cooler
  • Cold weather package / arctic weather kit
  • Pipe rack kit
  • Glazier kit
  • Motion flashing warning light
  • Battery circuit breaker
