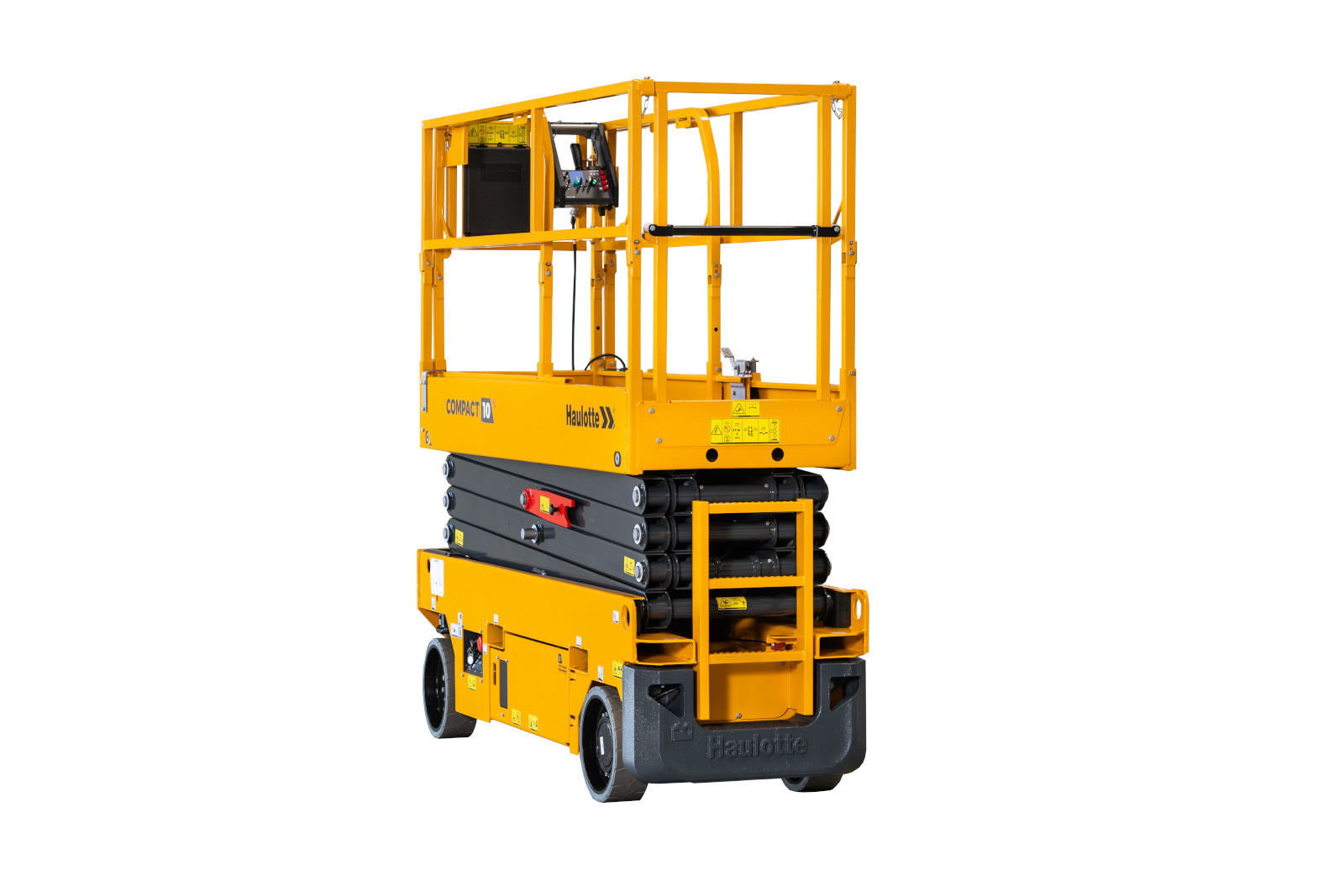

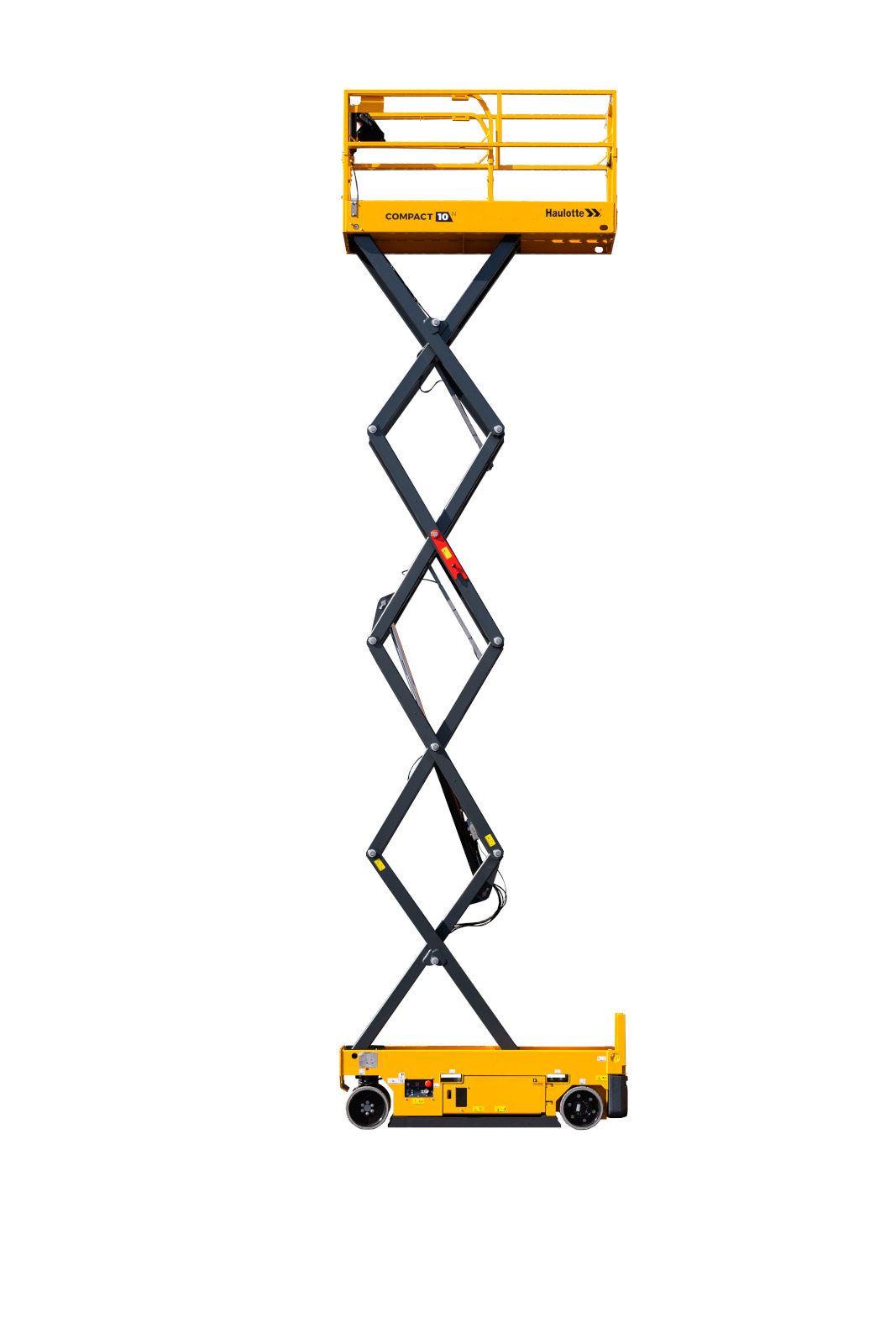

Electric Scissor LiftsCompact 10 N

  • Electric Scissor Lifts
  • Electric
  • Even ground
  • Inside and outside use
  • Logistics / Retail / Industry
  • Finishings
  • Maintenance and restoration
  • Sporting and other events
  • Smart rugged design
  • Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
  • Reinforced guardrails with additional vertical stiles for maximum durability
  • Maximized potential
  • Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
  • IN/OUT usage* with full height driving and no load restriction
  • Unique user experience
  • Proportional movements for precise driving (AC motors)
  • Ergonomic upper control box with grab handle & speed selector
  • Unbeatable serviceability
  • Haulotte Activ'Energy Management for battery care
  • On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

Working height 9.8 m
Platform height 7.8 m
Platform length 2.4 m
Platform length - extended 3.32 m
Length - extension 0.92 m
Platform width - outside 0.8 m
Height - stowed 2.35 m
Overall width 0.81 m
Length 2.5 m
Wheelbase 1.86 m
Ground clearance - center 12.5 cm
Ground clearance - deployed potholes 2 cm
Drive speed 0.7 / 1.5 / 4.2 km/h
Max. drive working height 7.8 m
Gradeability 25 %
Turning radius - outside 2.05 m
Non-marking tyres 15 x 5
Batteries 24 V - 225 Ah (C20)
Hydraulic system capacity 10 l
Weight 2 160 kg
Lift capacity - inside 250 kg (2 pers.)
Lift capacity - outside NA
Lift capacity on the extension 120 kg
Height - guardrails lowered 1.94 m
Tilt (longitudinal / lateral) 3.5° / 1.5°
  • Haulotte Activ'Energy Management: Smart CAN charger
  • 27A multivoltage charger
  • Battery access with swing out tray
  • Battery level indicator
  • Haulotte Activ’Screen (battery charge information, hourmeter, service alerts & failures in code or in text...)
  • Lateral & longitudinal forklift pockets
  • Foldable guardrails
  • Front platform extension
  • AC motors
  • Mobile upper control box
  • 2 drive speeds selector
  • Manual emergency descent
  • Mobile pothole guards
  • MyHaulotte multi-services portal access
  • 2 front steering wheels, 2 rear drive wheels
  • Solid non marking tires
  • Motion alarm
  • Electric brake release system
  • Drop bar entry
  • Haulotte Activ'Energy Management: automatic or manual battery water filling systems
  • AGM maintenance-free batteries
  • Secondary guarding system
  • Telematics solutions
  • Pipe cradle
  • Panel carrier
  • Swing gate entry
  • Basket plug (110 / 230 V)
  • Additional protection of upper & lower control box
  • Working light
  • Flashing light (single, dual or 360°)
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
