Presentation
- Performance & ease of use
- Best comfort and safety feeling
- Minimized total cost of ownership
Specifications
Performance & ease of use

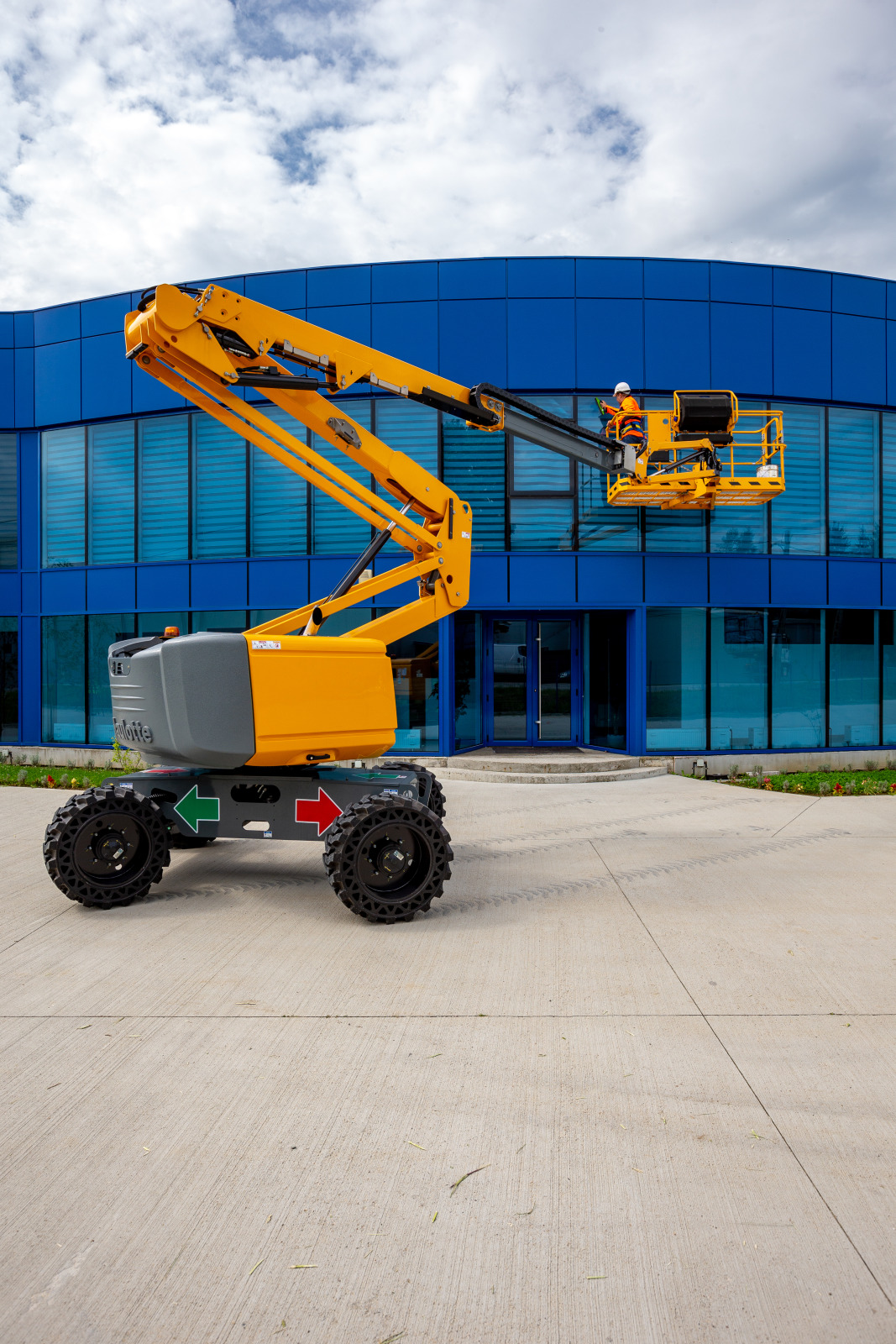

- Industry leading working envelope with an outreach of 8.3 m
- Best lifting speed of 40 sec
- Fully proportional and simultaneous movements
Best comfort and safety feeling
- Haulotte Activ'Shield Bar 2.0 (option)
- Haulotte Activ'Lighting System (option) for safe loading/unloading in conditions of low visibility
Minimized total cost of ownership
- Haulotte Activ'Screen (on board diagnostic)
- Haulotte Stop Emission System: automatically turns the engine off & on
- Easy access to all components
- Fully modular basket with upper control box cover
| Working height | 16 m |
| Platform height | 14 m |
| Horizontal outreach | 8.3 m |
| Up and over clearance | 7.65 m |
| Lift capacity | 230 kg (2 pers.) |
| Platform size | 1.83 x 0.80 m |
| Length - stowed | 6.75 m |
| Width | 2.3 m |
| Height - stowed | 2.3 m |
| Storage / transport length | 5.05 m |
| Storage / transport height | 2.4 m |
| Vertical jib rotation | 140° (- 80° / + 60°) |
| Platform rotation | 165° (- 75° / + 90°) |
| Turntable rotation | 355° non continus |
| Tailswing | 10 cm |
| Wheelbase | 2.1 m |
| Ground clearance | 37 cm |
| Tilt | 5 ° |
| Drive speed | 5.2 km/h |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 40 % |
| Tires - solid rough terrain | 830 x 285 mm |
| Turning radius - outside | 4.5 m |
| Power source | Kohler, TIER 4 final : Stage V, KSD 1403 NA / 18,4 kW |
| Weight | 6 095 kg |
| Ground clearance - mini | 0 m |
| Ground clearance - maxi | 0 m |
- Haulotte Stop Emission System

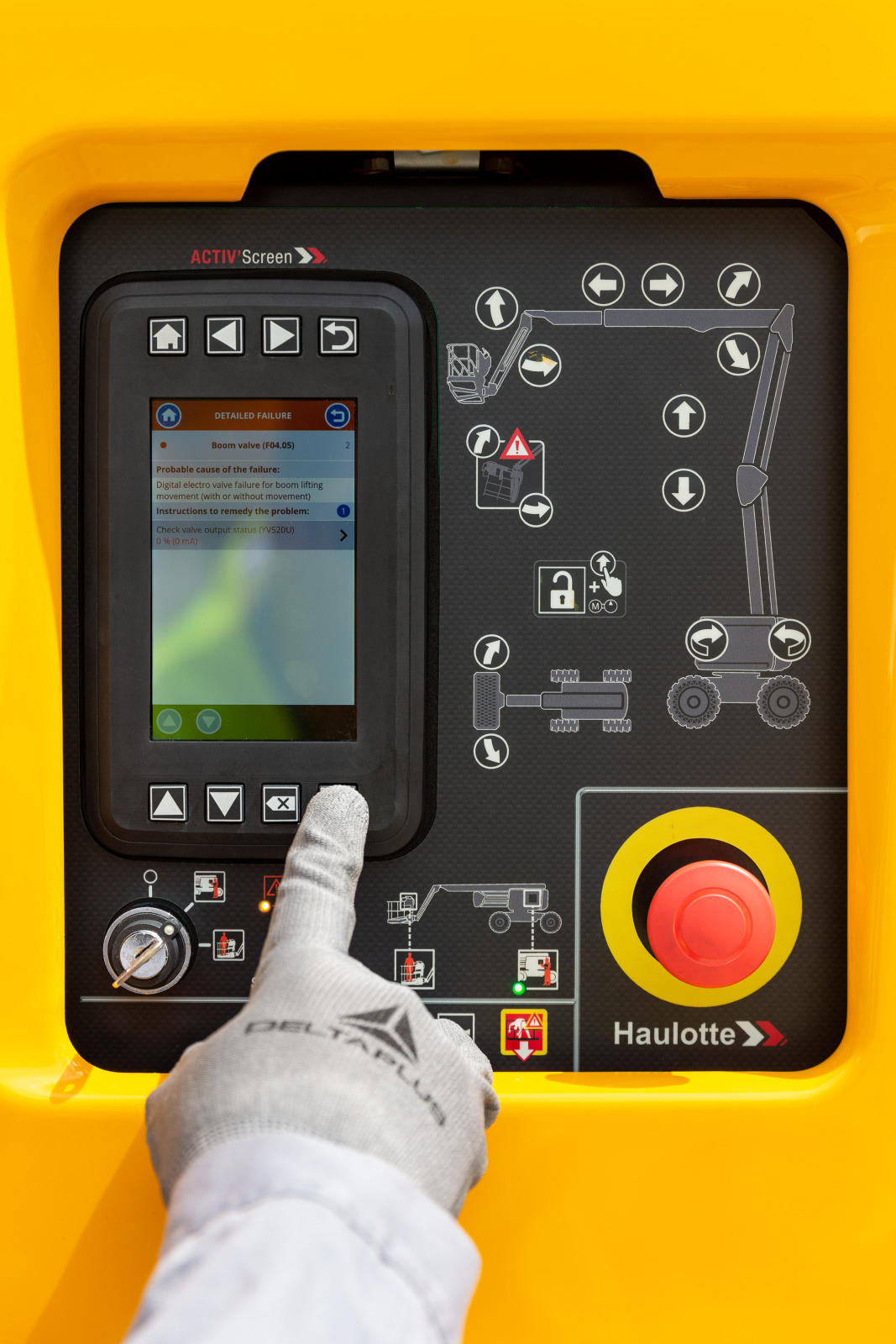

- Embedded diagnostic system Haulotte Activ'Screen on lower control box, with color screen.
- Universal telematics plug
- 4 wheel drive
- 2 wheel steer
- Front oscillating axle (RTJ O) increases stability on uneven ground
- 4 simultaneous movements for maximum productivity
- Permanent limited slip differential
- Upper control box cover
- Tool tray
- 230 kg (2 persons) load capacity
- Modular standard basket 1.83 m x 0.80 m, quick & easy to repair
- Drop bar entry gate
- AC power to platform (110 / 230 V)

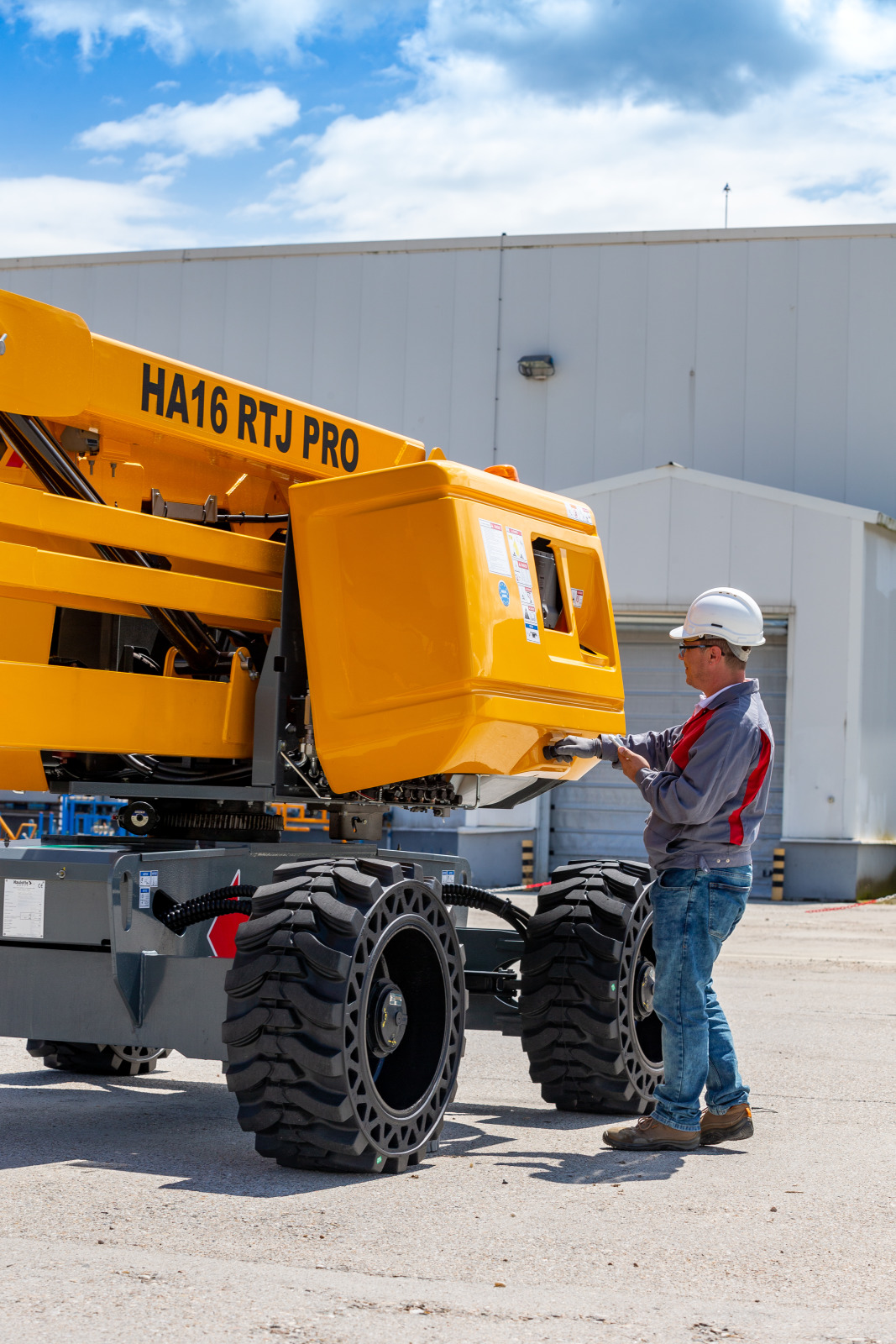

- Swing out engine tray for ease of maintenance
- Sound and light alarm for tilt and load
- Rotating beacon
- Travel alarm
- Hour meter
- 12 V battery / electrical control system
- Engine pre-heater with light indicator
- Low fuel level indicator (upper & lower control boxes)
- Electric pump system and emergency descent
- Haulotte Activ'Lighting System
- Haulotte Activ'Shield Bar 2.0
- Large cured on solid rough terrain tires 1025 x 365
- Non-marking tires
- Modular large basket 2.44 m x 0.91 m quick and easy to repair
- Power to platform (female plug in the basket with or without circuit-breaker 30 mA)
- Air-line to platform 6.5 mm inner diameter
- Lateral swing door entry gate
- Hydraulic generator
- Biodegradable hydraulic oil
- Hot weather kit: hydraulic oil cooler + hydraulic oil
- Cold weather kit: -10°C / - 25°C
- Working light
- Battery cut-off
- FASTN, universal and active anchorage
