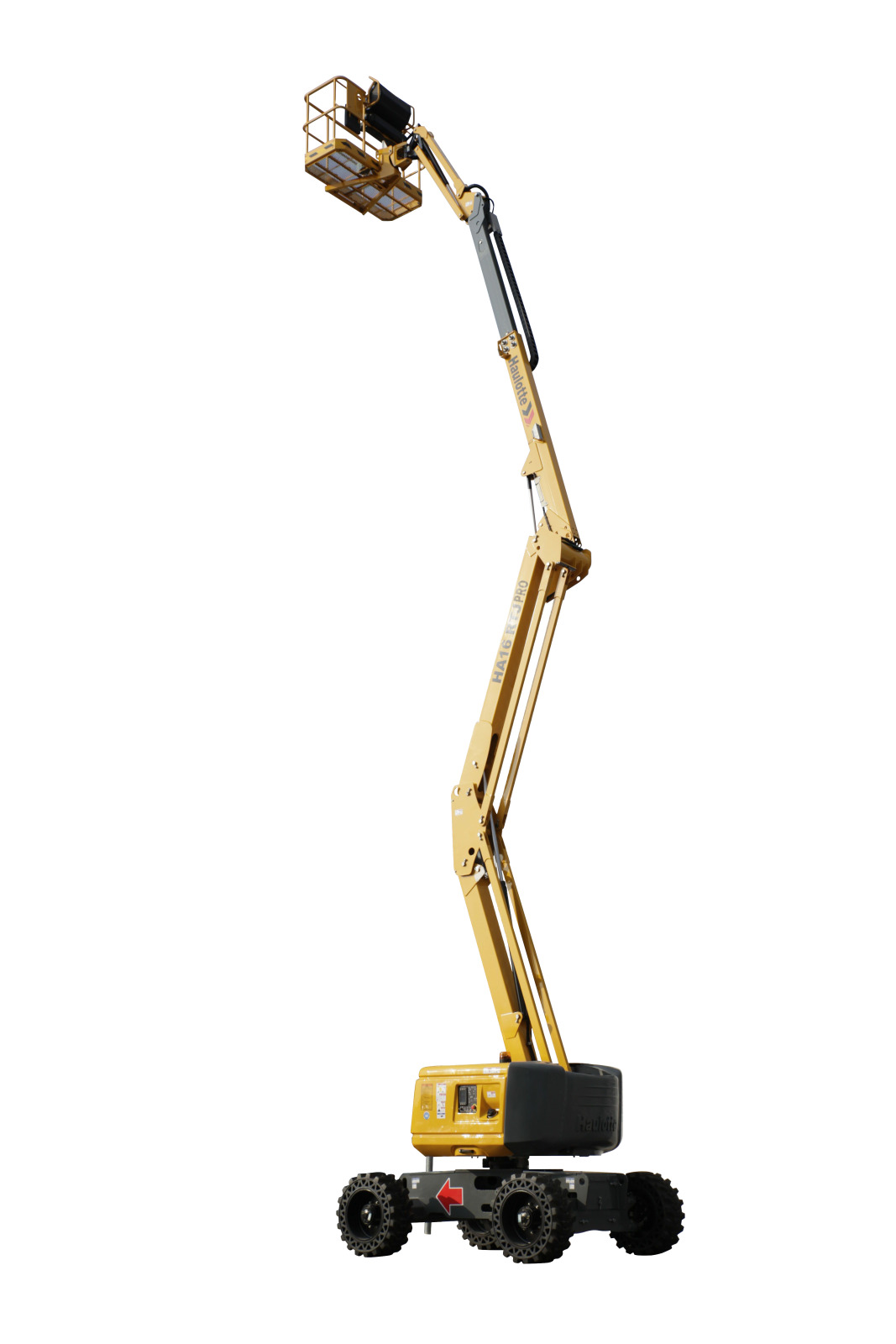

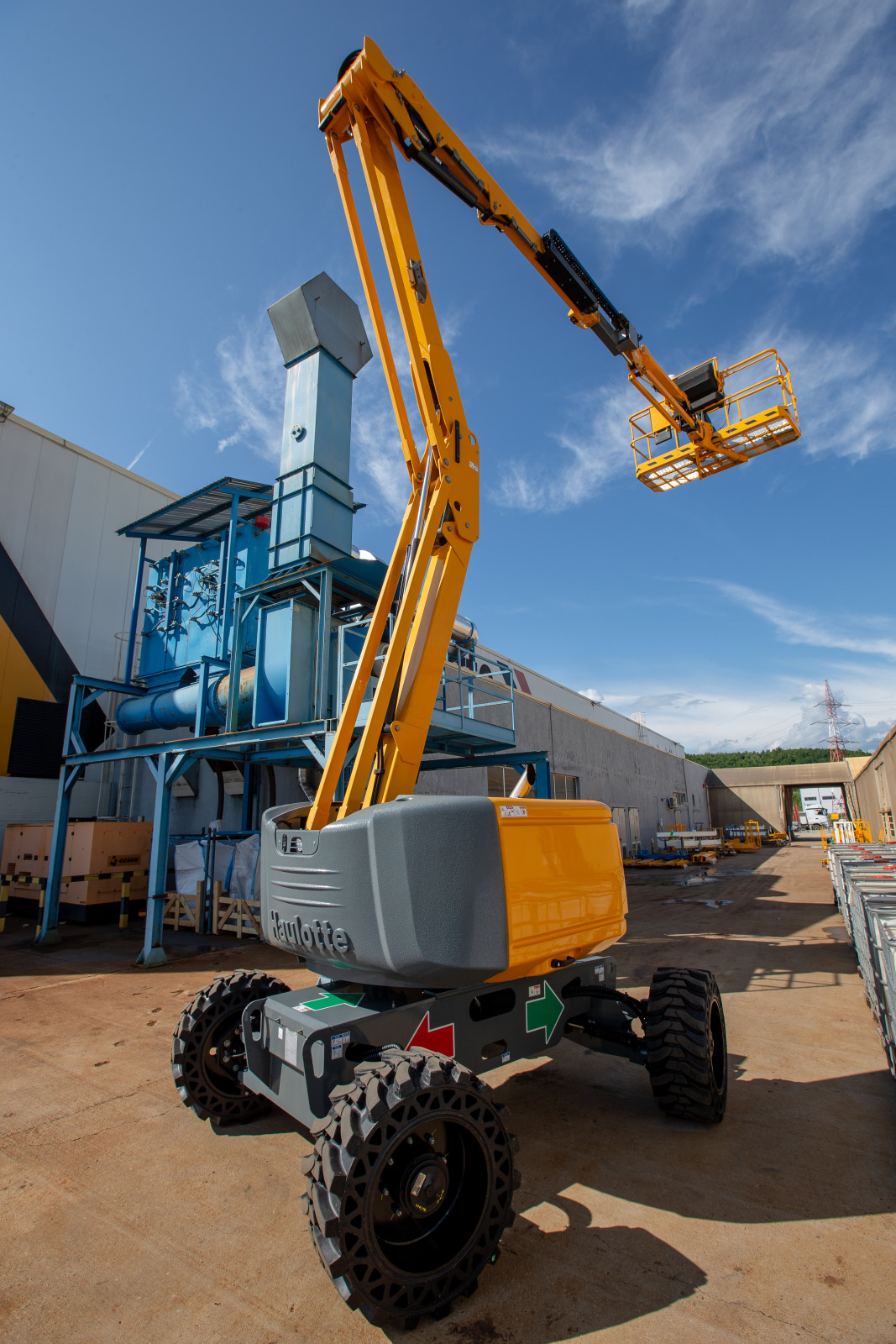

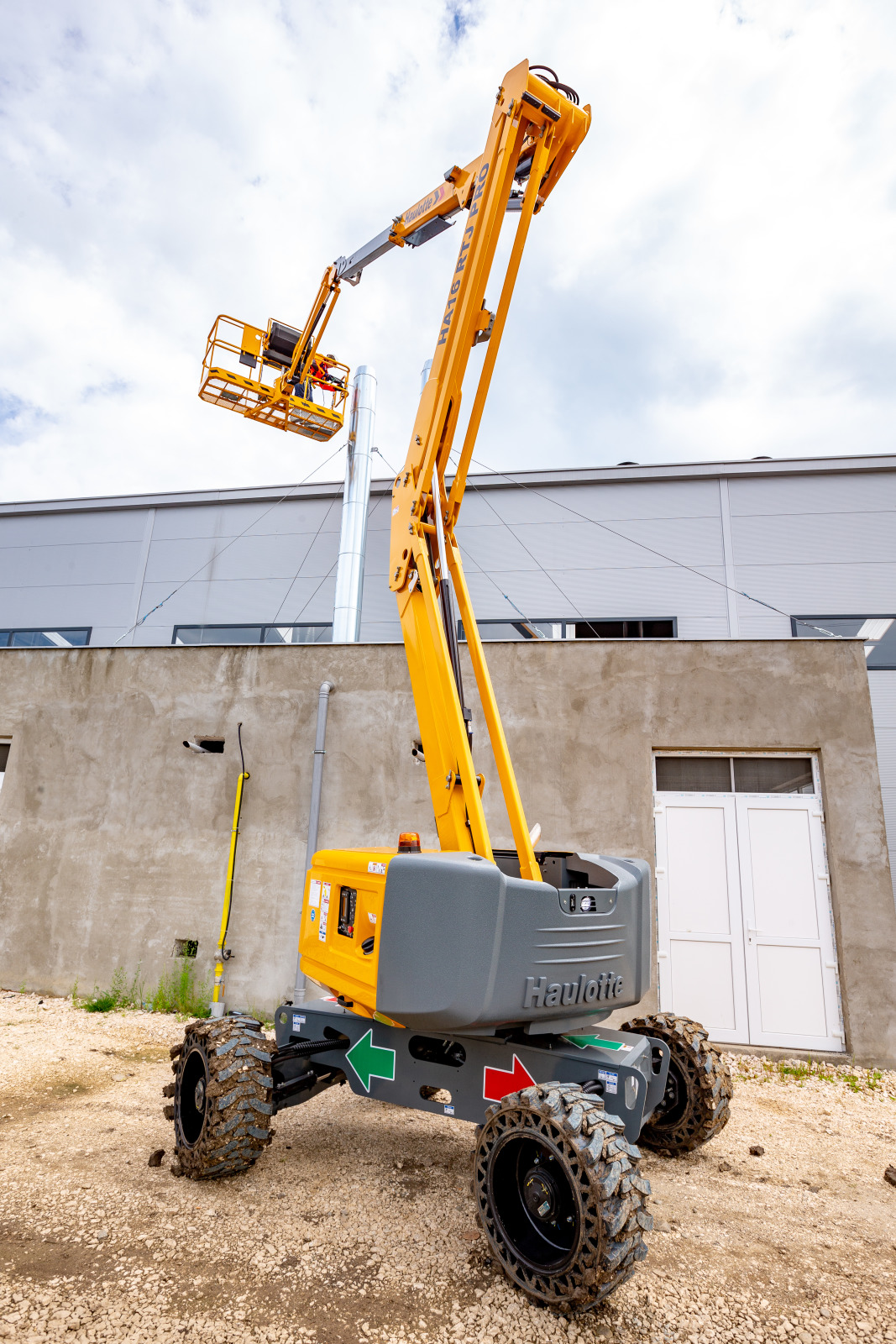

Diesel Articulating BoomsHA16 RTJ PRO

  • Diesel Articulating Booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Landscaping
  • Sporting & other events
  • Performance & ease of use

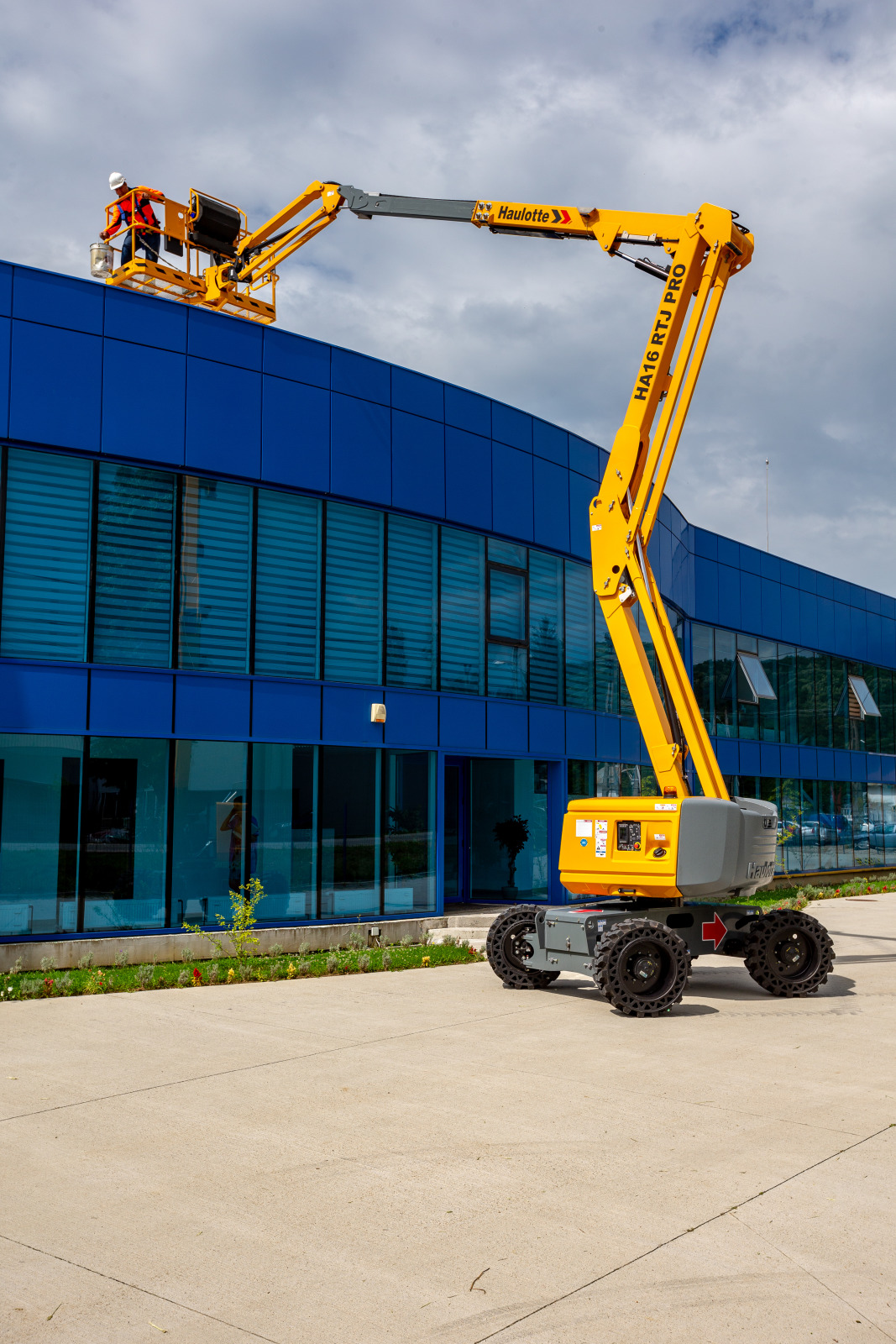

  • Industry leading working envelope with an outreach of 8.3 m
  • Best lifting speed of 40 sec
  • Fully proportional and simultaneous movements
  • 4-wheel steer and 360° continuous rotation for a greater productivity
  • Best Comfort and Safety Feeling
  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Activ'Lighting System for safe loading / unloading in conditions of low visibility
  • Maximized total cost of ownership
  • Haulotte Activ'Screen (on board diagnostic)
  • Haulotte Stop Emission System: automatically turns the engine off & on
  • Easy access to all components

Working height 16 m
Platform height 14 m
Horizontal outreach 8.3 m
Up and over clearance 7.65 m
Lift capacity 230 kg (2 pers.)
Platform size 1.83 x 0.80 m
Length - stowed 6.75 m
Width 2.3 m
Height - stowed 2.3 m
Vertical jib rotation 140° (- 80° / + 60°)
Platform rotation 165° (- 75° / + 90°)
Turntable rotation 360° continuous
Tailswing 10 cm
Wheelbase 2.1 m
Ground clearance 38 cm
Tilt 5 °
Drive speed 5.2 km/h
Gradeability 40 %
Turning radius - outside 3.75 m
Power source Kubota, 18.5 kW (Stage 5 in EU) - Kubota, 26.5 kW, (Stage 3A in NRC)
Weight 6 650 kg
Storage / transport length 5.05 m
Storage / transport height 2.4 m
Tyres - solid rough terrain 850 x 340 mm
Maximum wind speed rating 60 km/h
  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Stop Emission System
  • Haulotte Activ'Lighting System

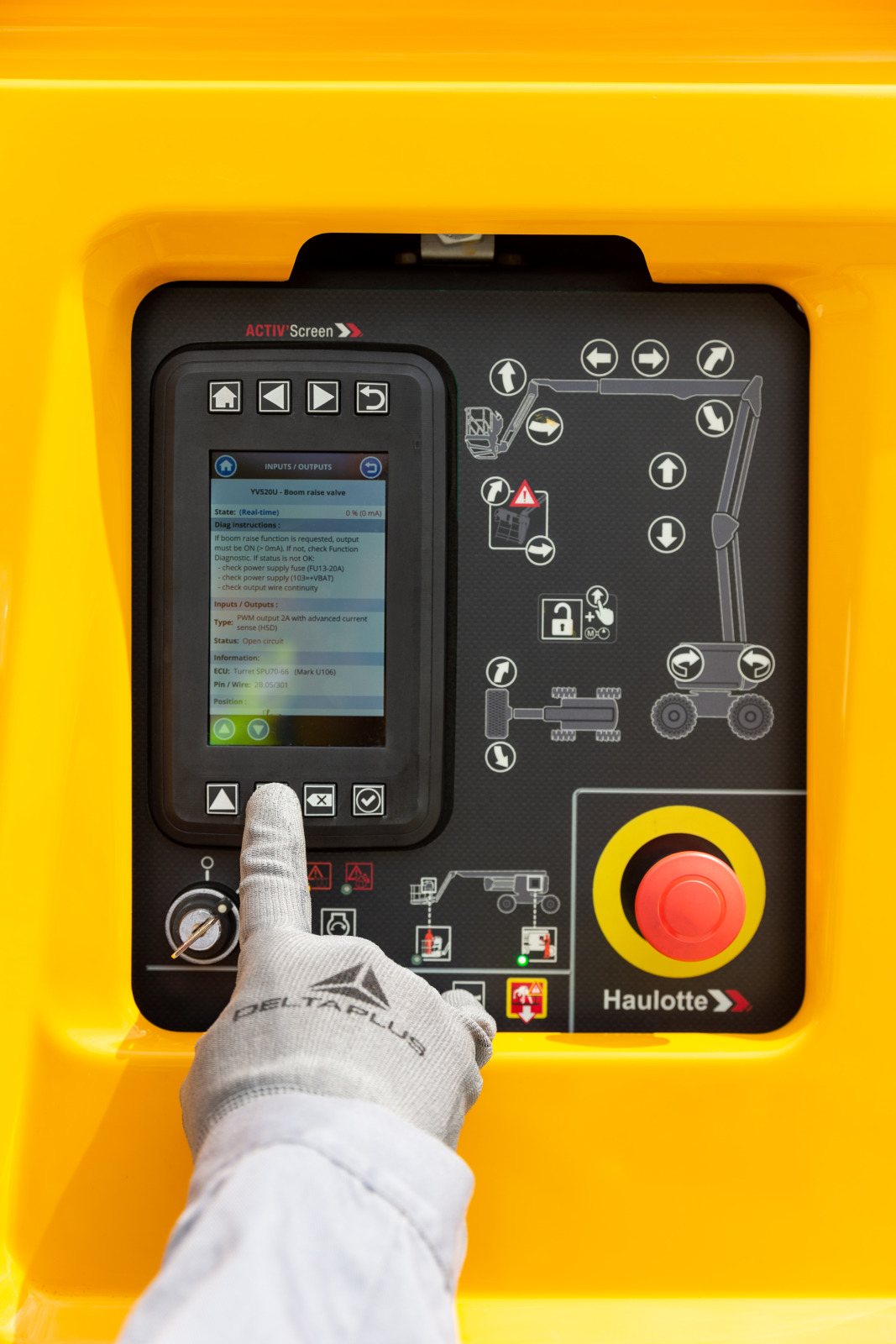

  • Embedded diagnostic system Haulotte Activ'Screen on lower control box, with color screen.
  • Universal telematics plug
  • 4 wheel drive
  • 4 wheel steer
  • Front oscillating axle increases stability on uneven ground
  • 4 simultaneous movements for maximum productivity
  • Permanent limited slip differential
  • Upper control box cover
  • Tool tray
  • 230 kg (2 persons) load capacity
  • Modular standard basket 1.83 m x 0.80 m, quick & easy to repair
  • Drop bar entry gate
  • AC power to platform (110 / 230 V)

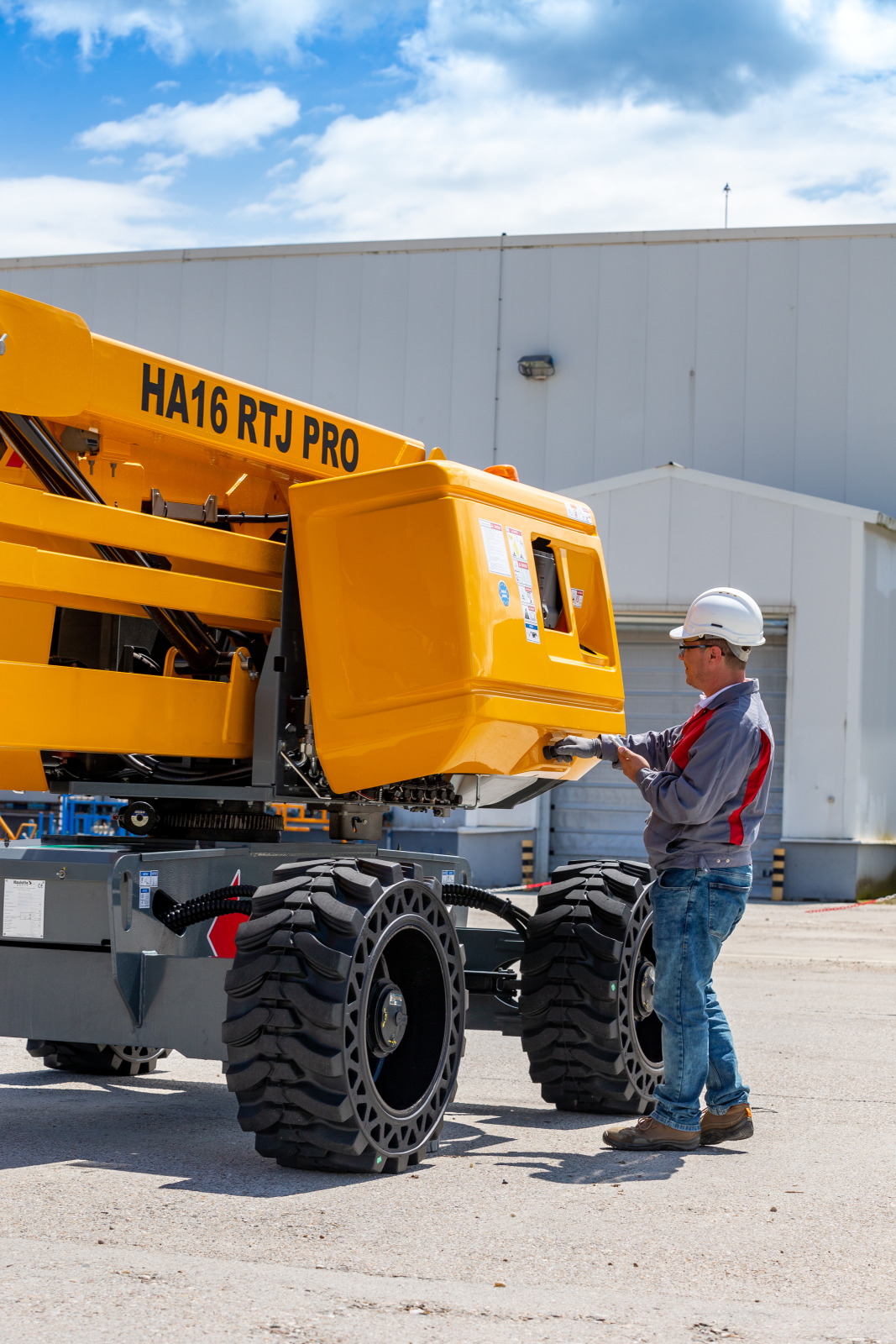

  • Swing out engine tray for ease of maintenance
  • Sound and light alarm for tilt and load
  • Rotating beacon
  • Travel alarm
  • Hour meter
  • 12 V battery / electrical control system
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper & lower control boxes)
  • Electric pump system and emergency descent
  • Large cured on solid rough terrain tires 1025 x 365
  • Non-marking tyres 14 x 17.5
  • Modular large basket 2.44 m x 0.91 m quick and easy to repair
  • Power to platform (female plug in the basket with or without circuit-breaker 30 mA)
  • Air-line to platform 6.5 mm inner diameter
  • Lateral swing door entry gate
  • Hydraulic generator Dynaset 3.5 Kw
  • Biodegradable hydraulic oil
  • Hot weather kit: hydraulic oil cooler + hydraulic oil
  • Cold weather kit : - 10°C / - 25°C
  • Spark arrestor and electric one-way valve
  • Working light
  • Battery cut-off
