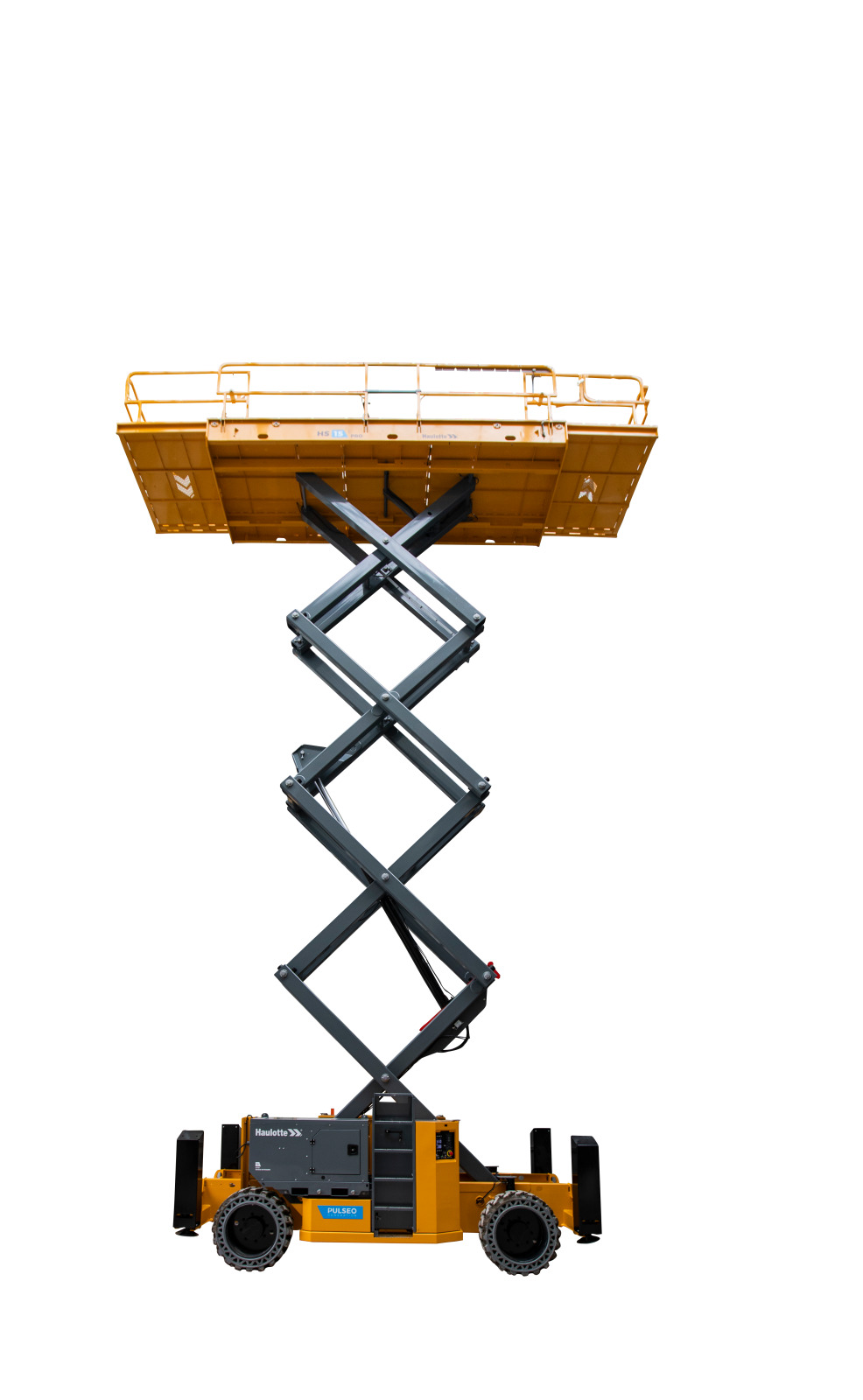

Electric Scissor LiftsHS15 E PRO

  • Electric Scissor Lifts
  • High performance & rough terrain capacities
  • Optional & removable, low fuel consumption Range Extender (Stage 5)
  • Multiple charging modes including optional accelerated charge
  • Extended duty cycles
  • Haulotte Activ’Energy Management takes care of your battery
  • Easy access to components
  • Activ’Screen: on-board configuration & diagnostic interface
  • Maintenance and service-oriented
  • Smooth & proportional movements
  • Versatile use: outdoor / indoor
  • Silent & clean operations
  • Full electric drive
  • Drive axle with manual locking rear differential increases ground traction
  • Oscillating axle delivers excellent ground adherence
  • Platform capacity of 750 kg

Working height 15 m
Platform height 13 m
Lift capacity 750 kg (4 pers.)
Platform length 3.93 m
Platform length - extended 5.89 m
Length - extension 0.98 m
Platform width - outside 1.89 m
Height - stowed 3.05 m
Overall width 2.3 m
Length 4.4 m
Wheelbase 2.76 m
Drive speed 5 km/h
Max. drive working height 15 m
Gradeability 45 %
Turning radius - outside 6.75 m
Batteries 8 x 6 V - 435 Ah (C20)
Weight 7 518 kg
Tyres 830 x 285 mm
Lift capacity on the extension 225 kg
Height - guardrails lowered 2.25 m
Ground clearance 30.7 cm
Tilt (lonitudinal / lateral) 5° / 3°
XL platform length (option) 4.94 m
XL platform length - extended (option) 7.5 m
Lenght - extension XL option 1.28 m
  • 4 wheel drive
  • Mechanical axle with manual locking rear differential
  • Front oscillating axle - 6°
  • Outriggers with centralized or individual controls
  • Dual platform extensions
  • Haulotte Activ'Lighting System for safe loading in conditions of low visibility
  • Haulotte Activ'Screen
  • AC motors
  • 48V battery pack
  • Haulotte Activ'Energy Management: smart battery management system & manual centralized watering
  • Two drop bar entries
  • Folding handrails
  • Range Extender (5.5 kW - Stage 5)
  • Accelerated charger (380 V)
  • Automatic battery water-filling system
  • Platform lighting
  • XL platform with dual extensions (7.5 m)
  • Double swing gate entries
  • AC power to platform plug (110 / 230 V)
  • Material handling rack
  • Non marking tires
  • Cold & arctic weather kits
  • Work light
  • Scissors stack protection
  • Telematics holder & predisposition
  • Telematics solutions
