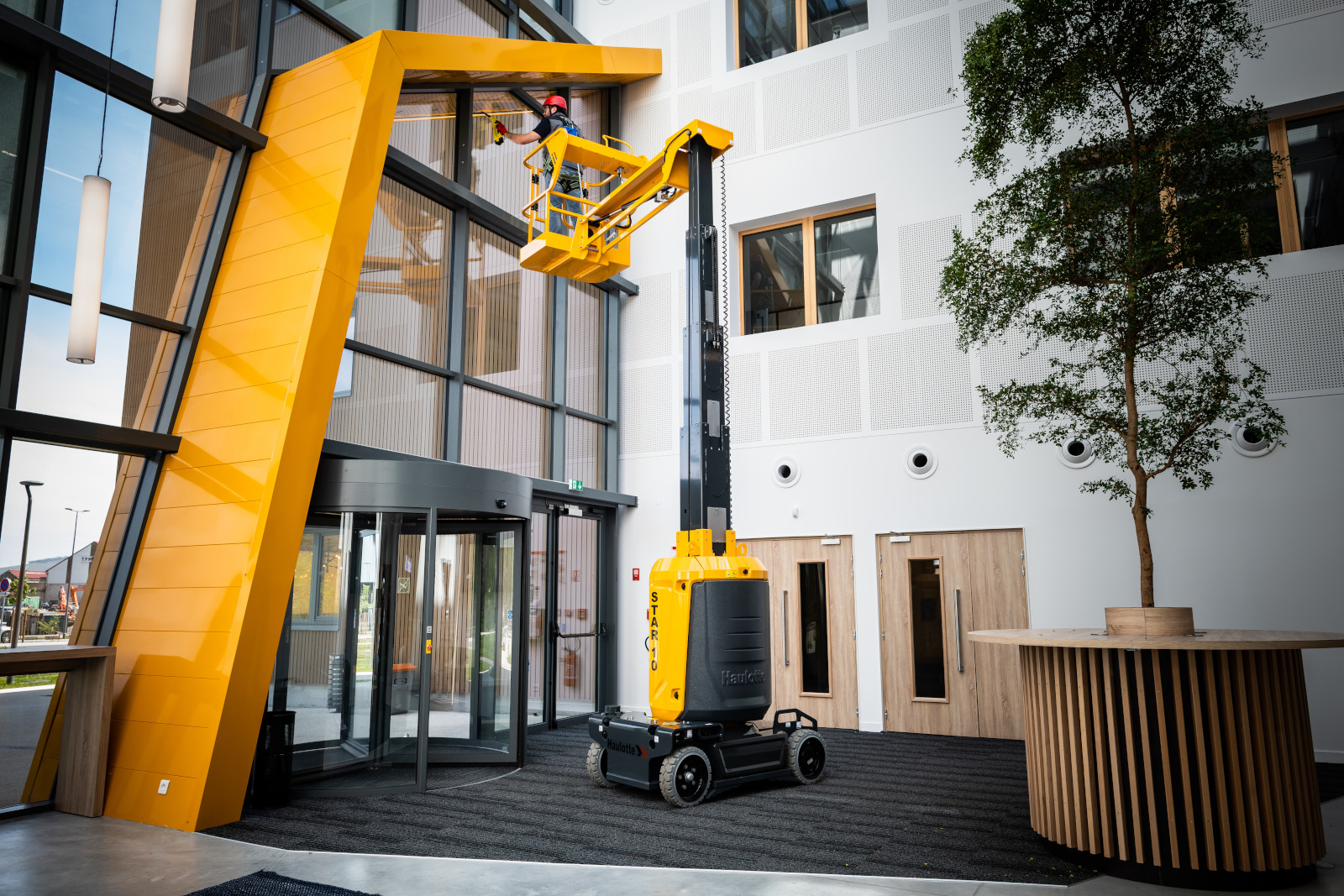

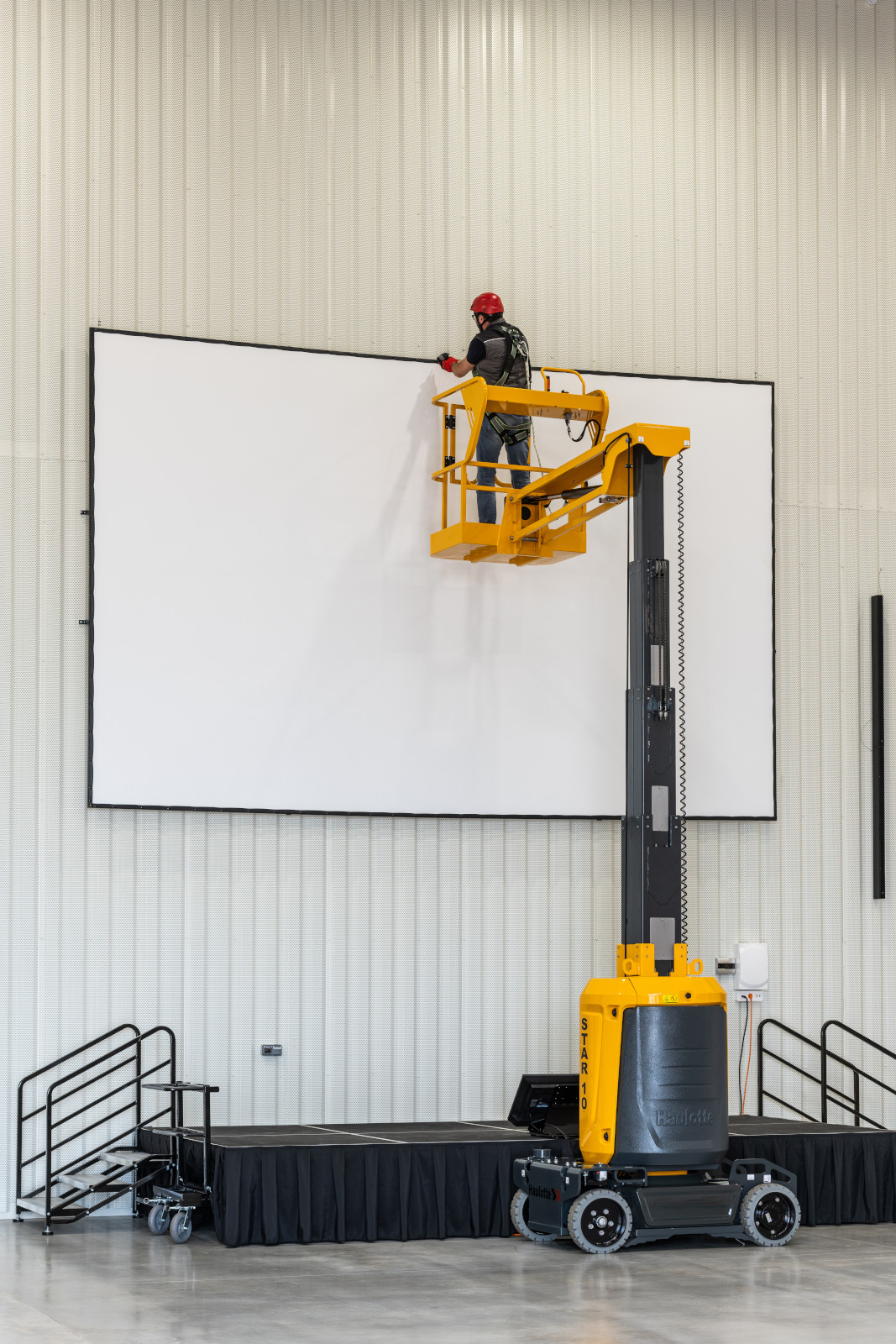

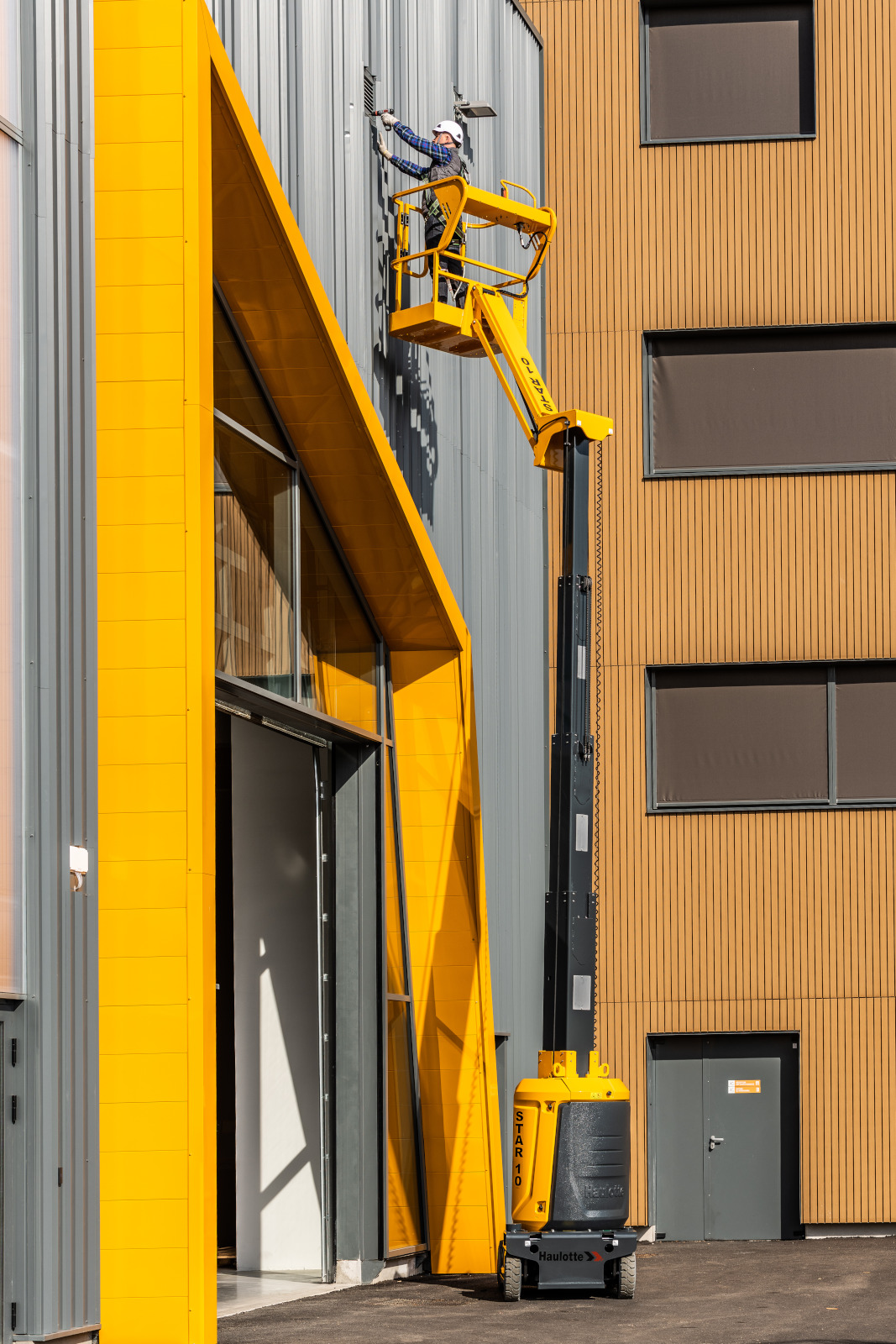

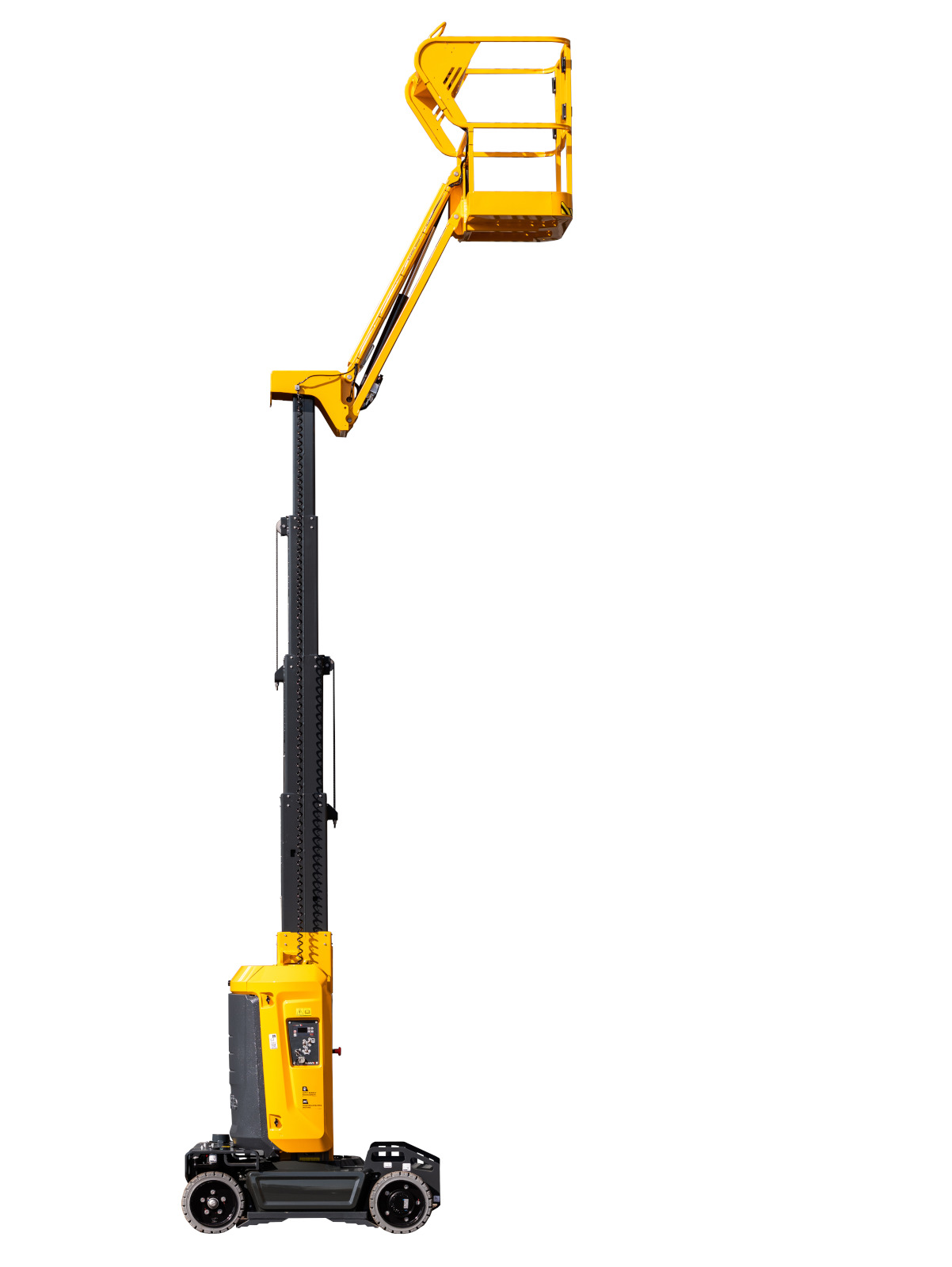

Vertical MastsStar 10

  • Vertical Masts
  • Electric
  • Even ground
  • Inside and outside use
  • Logistic / Retail / Industry
  • Finishings
  • Maintenance & restoration
  • Sporting & other events
  • Optimal agility in confined working areas
  • Progressive electric drive AC motors
  • Zero tail swing
  • 3 m outreach vertical jib
  • Minimal maintenance & downtime
  • Maintenance free brushless AC motors
  • Haulotte Activ'Screen (onboard diagnostic)
  • Haulotte Activ'Energy Management takes care of your batteries
  • Almost 0 battery maintenance : automatic & centralized waterfilling system
  • Longer life time
  • Unbreakable hoods in composite material
  • Durability multiplied by 3 on pins, bushes, non-painted parts and fastening hardware
  • Smart transportability
  • Versatile and effective transport solutions with forklift tine pockets
  • 25 % gradeability to easily climb truck ramps

Working height 10 m
Platform height 8 m
Horizontal outreach 3 m
Lift capacity - inside 200 kg (2 pers.)
Platform size 0.78 x 0,98 m
Length 2.7 m
Width 1 m
Height - stowed 1.99 m
Tailswing 0 cm
Wheelbase 1.2 m
Ground clearance 10 cm
Drive speed proportional 0.6 - 5 km/h
Turning radius - outside 1.88 m
Turntable rotation 345 °
Tyres - non marking 16 x 5 x 10.5
Power source 24 V - 250 Ah
Weight 2 677 kg
Tilt alarm 3 °
Gradeability 25 %
Max driveable platf. height 8 m
Vertical jib rotation 130° (+ 70 ° / - 60 °)
Hydraulic system capacity 7 l
Lift capacity - outside 200 kg (1 pers.)
  • Haulotte Activ'Energy Management: Smart CAN charger
  • Automatic centralized battery filling
  • 24 V electric drive brushless AC motors
  • 24 V – 250 Ah traction batteries
  • Battery charge indicator
  • On-board diagnostic tool Haulotte Activ’Screen
  • Forklift tine pockets
  • Towing hooks and lifting eyes
  • Passive potholes
  • 2 front steering wheels
  • 2 rear driving wheels
  • Non-marking tires
  • Brake release
  • Hourmeter
  • Horn
  • Emergency stop buttons at cage and ground level
  • Load controller in the platform
  • Emergency hand pump
  • 2 control stations at cage and ground level
  • Drop bar entry
  • 2 rings in the platform for safety harnesses
  • Travel alarm
  • Haulotte Activ’Shield Bar
  • Power line in platform
  • Air line in platform
  • Swing door entry gate
  • Biodegradable oil
  • Maintenance-free batteries
  • Telematics ready
  • Hydraulic oil for cold countries
  • Flashing light
  • Working light
