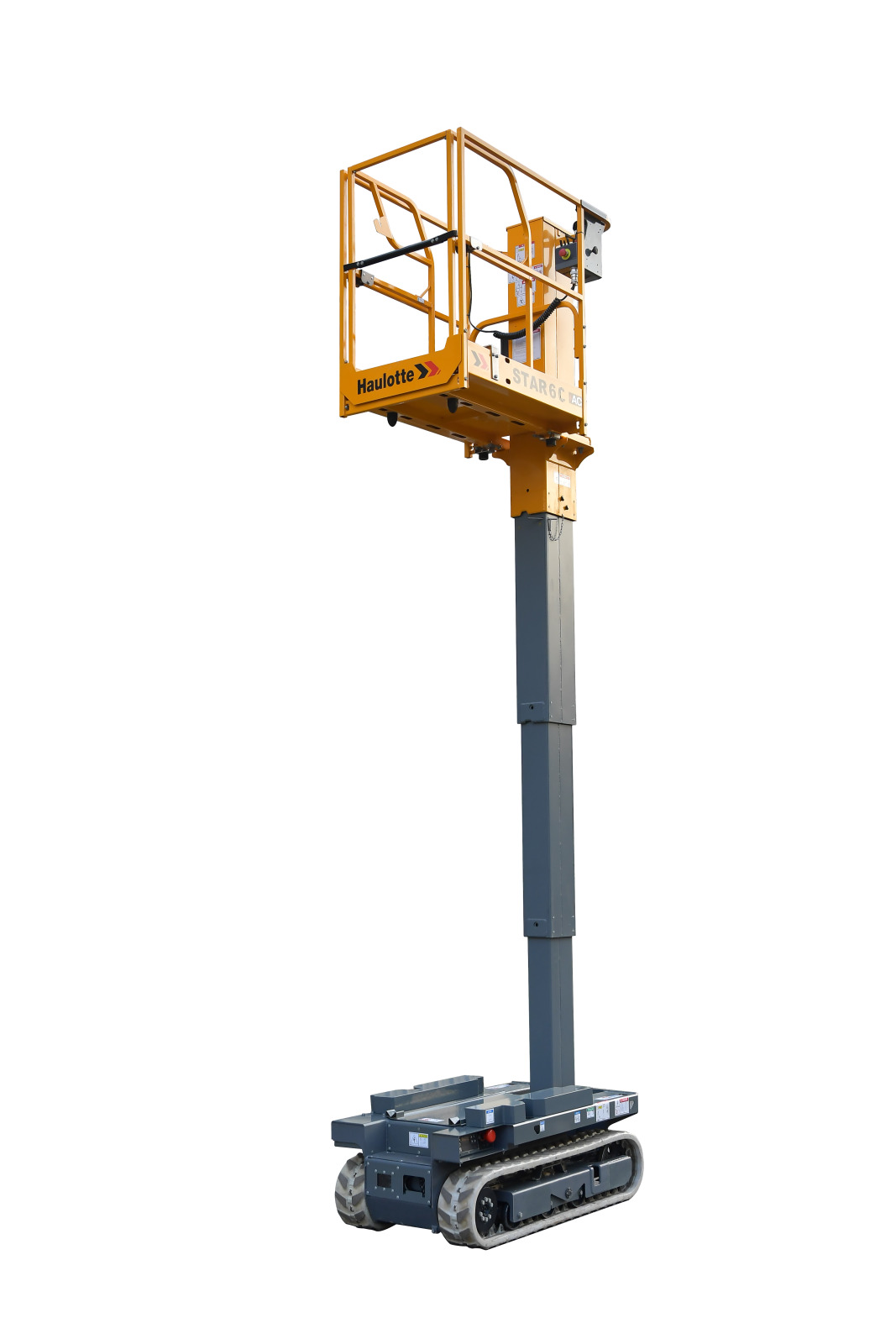

Vertical MastsStar 6 CRAWLER
- Go everywhere
- High-precision driving & smoothness
- Intermediate supporting wheels in crawler track system
- Ability to go through uneven grounds and water puddles
- Dedicated forklift pockets
- Great agility in confined working area
- Compact machine: only 0.76 m width
- Low turning radius
- + 0.4 m platform extension
- Platform with dedicated anti-slip step
- Ergonomic & intuitive platform control box with battery level indicator
- Optimal total cost of ownership
- 3-stage-cylinder mast: no chain & no cable
- Direct electric drive brushless AC motors
- Easy access to components (hoods and dedicated hand pump)
- Onboard diagnostic: Haulotte Activ’Screen
| Working height | 5.8 m |
| Platform height | 3.8 m |
| Horizontal outreach | 0.4 m extension |
| Lift capacity - inside | 200 kg (2 pers.) |
| Platform size | 0.74 m x 1.0 m |
| Length | 1.44 m |
| Width | 0.76 m |
| Height - stowed | 1.72 m |
| Ground clearance | 6 cm |
| Drive speed proportional | 0.8 - 2.2 km/h |
| Turning radius - outside | 1.25 m |
| Power source | 2 x 12 V - 115 Ah (C5) |
| Weight | 1175 kg |
| Tilt alarm | 1.5° / 3° |
| Gradeability | 25 % |
| Max driveable platf. height | 0.7 m |
| Hydraulic system capacity | 5 l |
| Lift capacity - outside | 200 kg (1 pers.) |
| Rubber tracks - non marking | 180 x 72 x 43 |
| Platform size with extension | 0.74 m x 1.44 m |
- Motion movement only in stowed position
- 24 V electric drive brushless AC motors
- 20 A battery charger
- 2x12 V - 115 Ah maintenance-free batteries
- Battery level indicator
- Haulotte Activ'Screen
- Fork lifting pockets
- Hoisting and lifting eyes
- Door entry gate with lock
- 2 drive speed
- 2 steering and driving non marking rubber tracks
- Hourmeter
- Horn
- Travel alarm
- Emergency stop at cage and ground level
- Lowering system
- Handing pump for platform elevation
- Control stations at cage and ground level
- Mobile upper control box
- 2 towing hooks
- Platform extension deck + 0.4 m
- Lockable battery circuit breaker
- Upper control box protection plastic cover
- Joystick protection
- Deadman pedal
- Flashing light
- Hydraulic oil for cold countries
- Biodegradable oil
